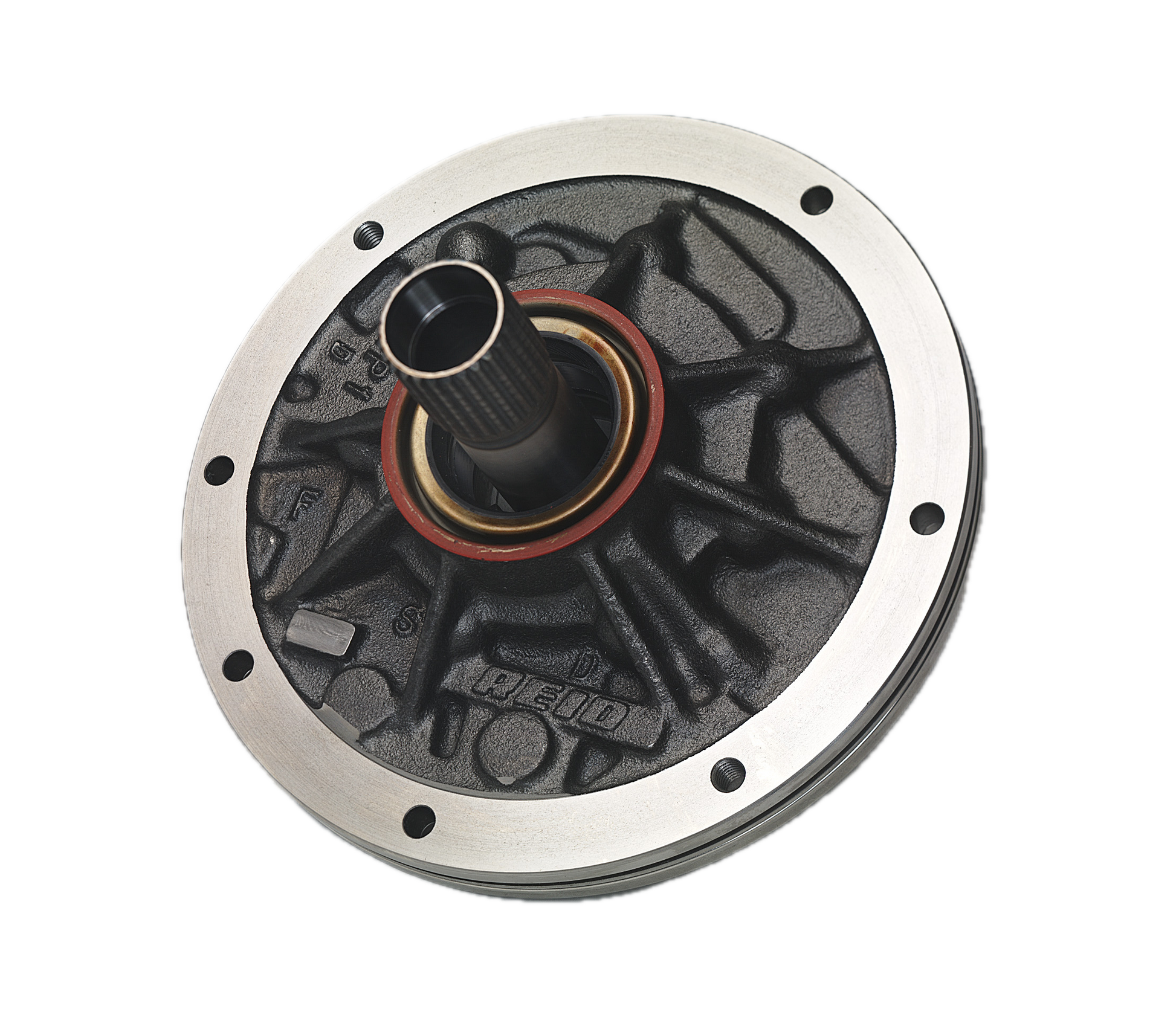

PGP1 - Powerglide Transmission Pump

This is not a rebuild or just a partial replacement – it’s 100% brand new and complete! The PGP1 has been designed from scratch to strengthen and update the Powerglide pump for your racing applications.

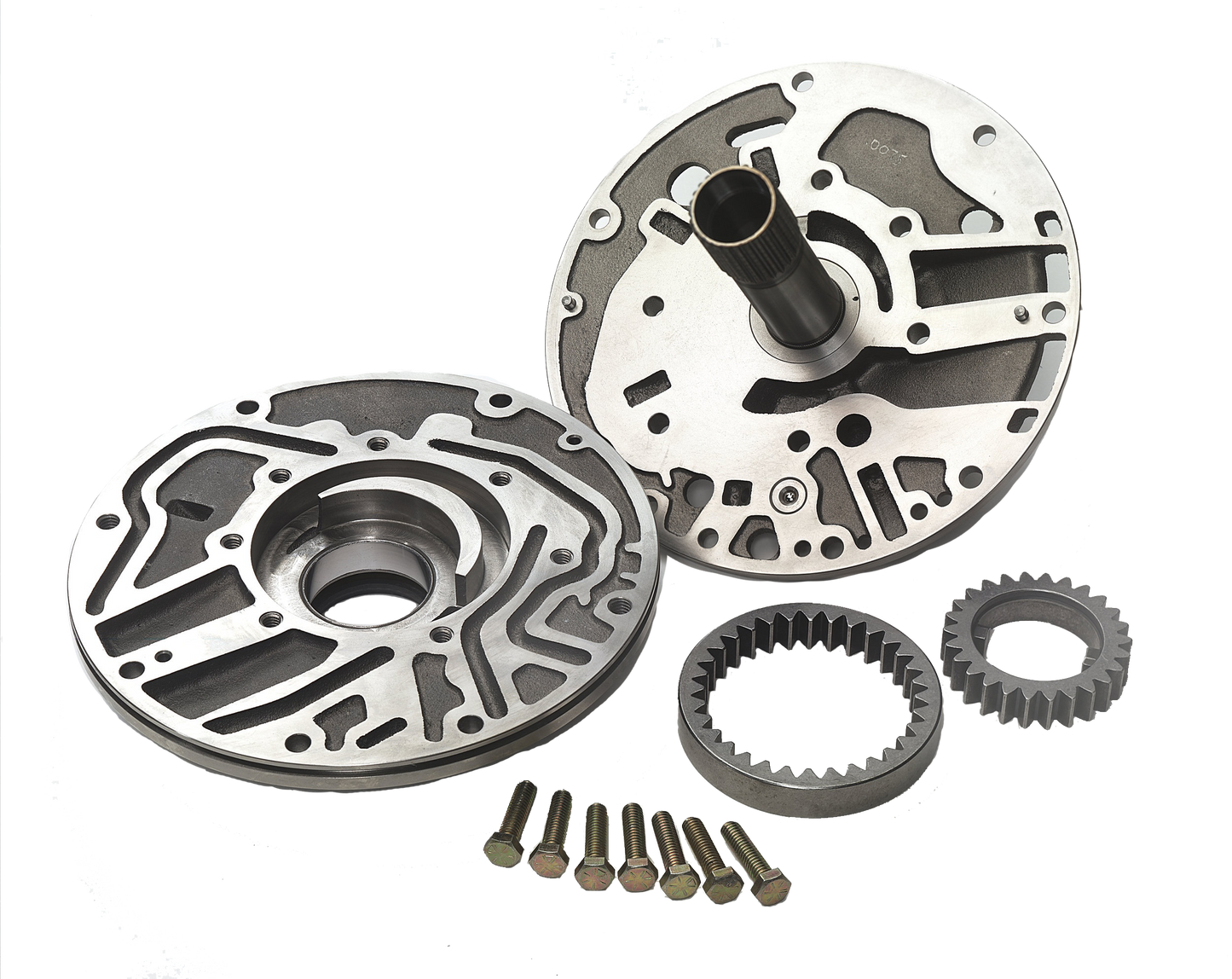

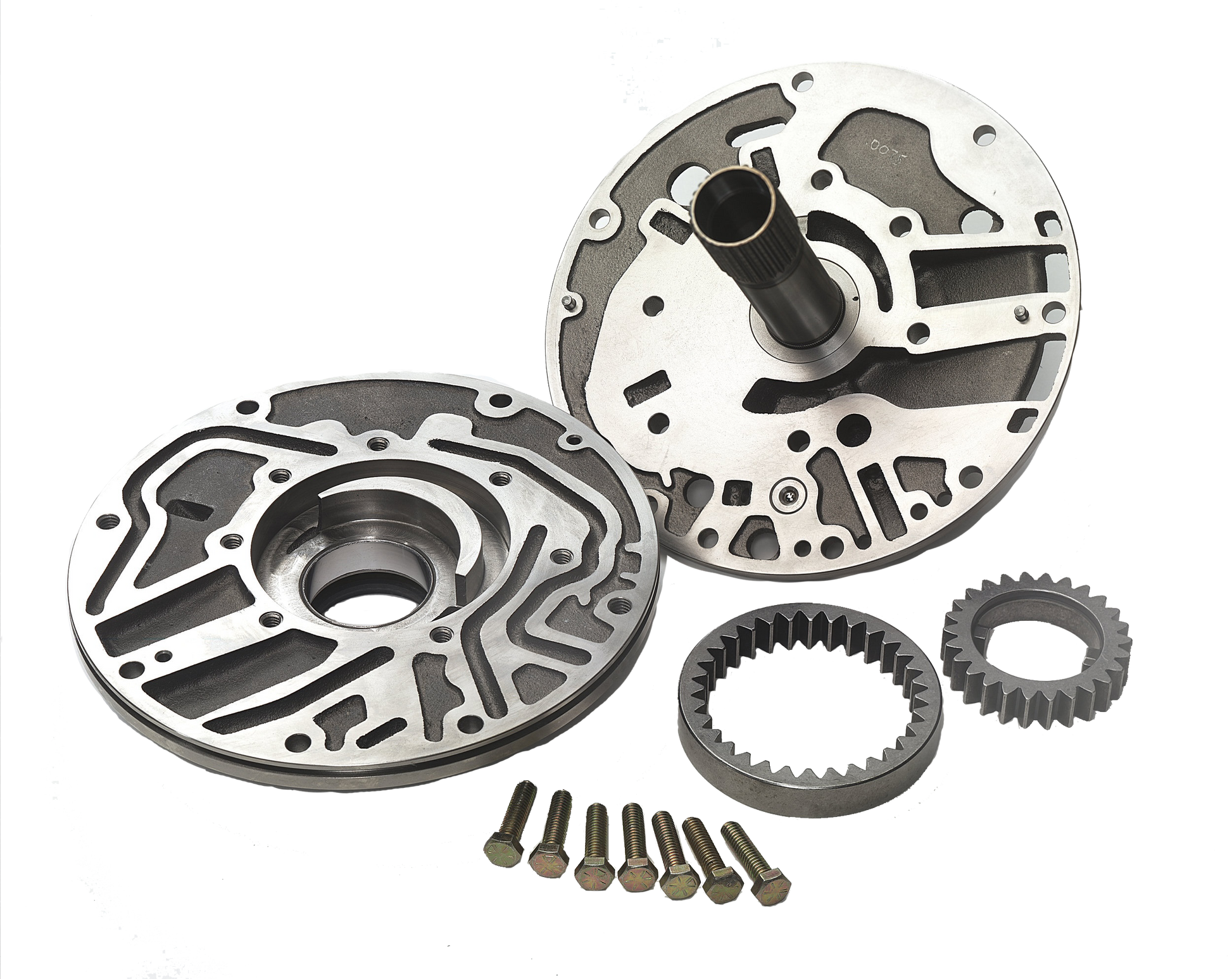

• Larger pump gears for more volume and pressure at low RPM.

• Extra volume to prevent rocking or backing up when transbrake is applied

• Stiffer castings with ribs to prevent flexing and pressure loss at high line pressure

• High strength cast iron for maximum rigidity and minimum distortion at high temperatures

• Custom, high strength stator support shaft to handle high horse power

• Extra clamping bolts (7 total) to hold pump halves together at high pressure

• Redesigned oil pathways to increase flow to converter and cooler

• High clutch drum bushing pressure feed

• Factory machined for roller thrust bearing
