Reid Racing

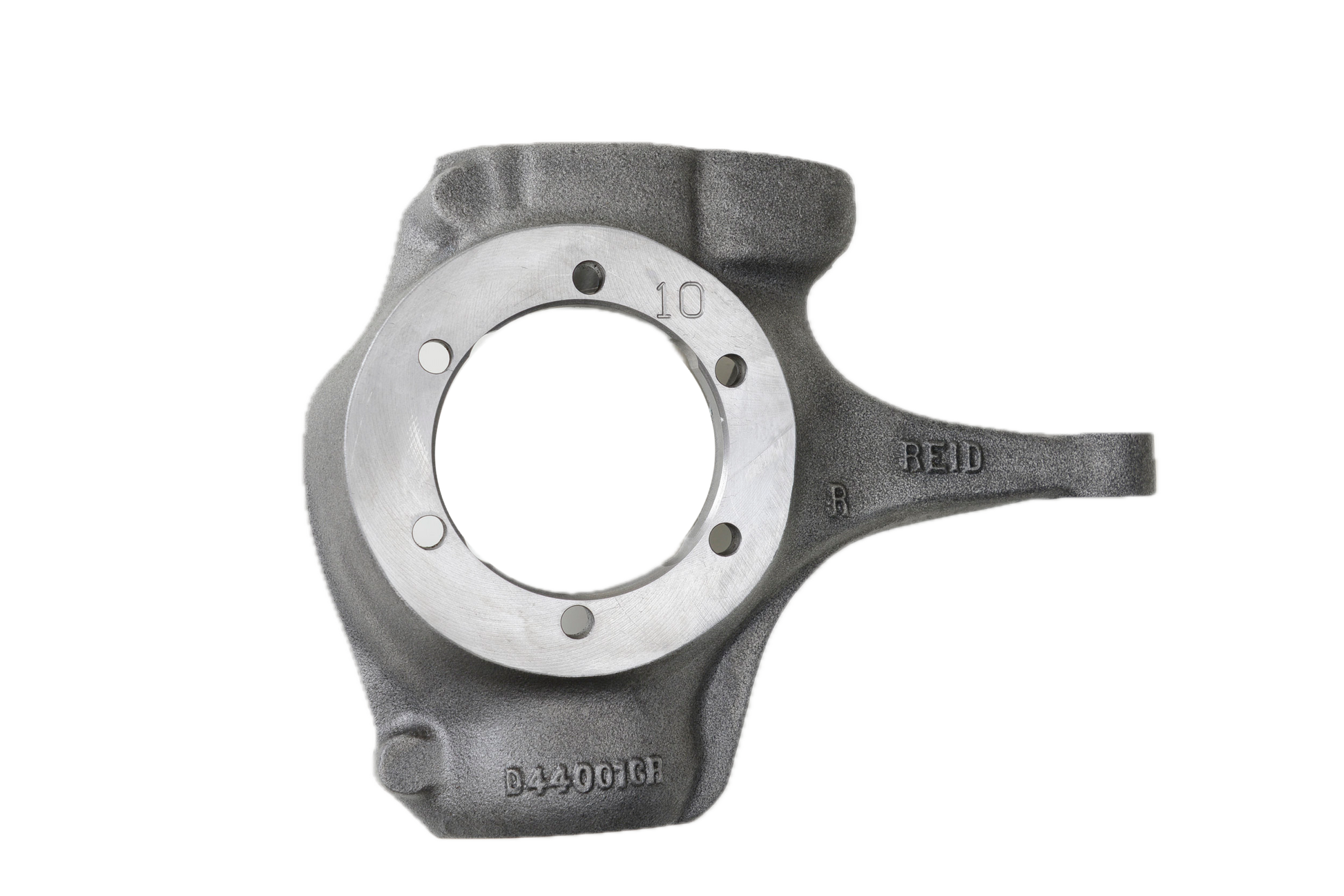

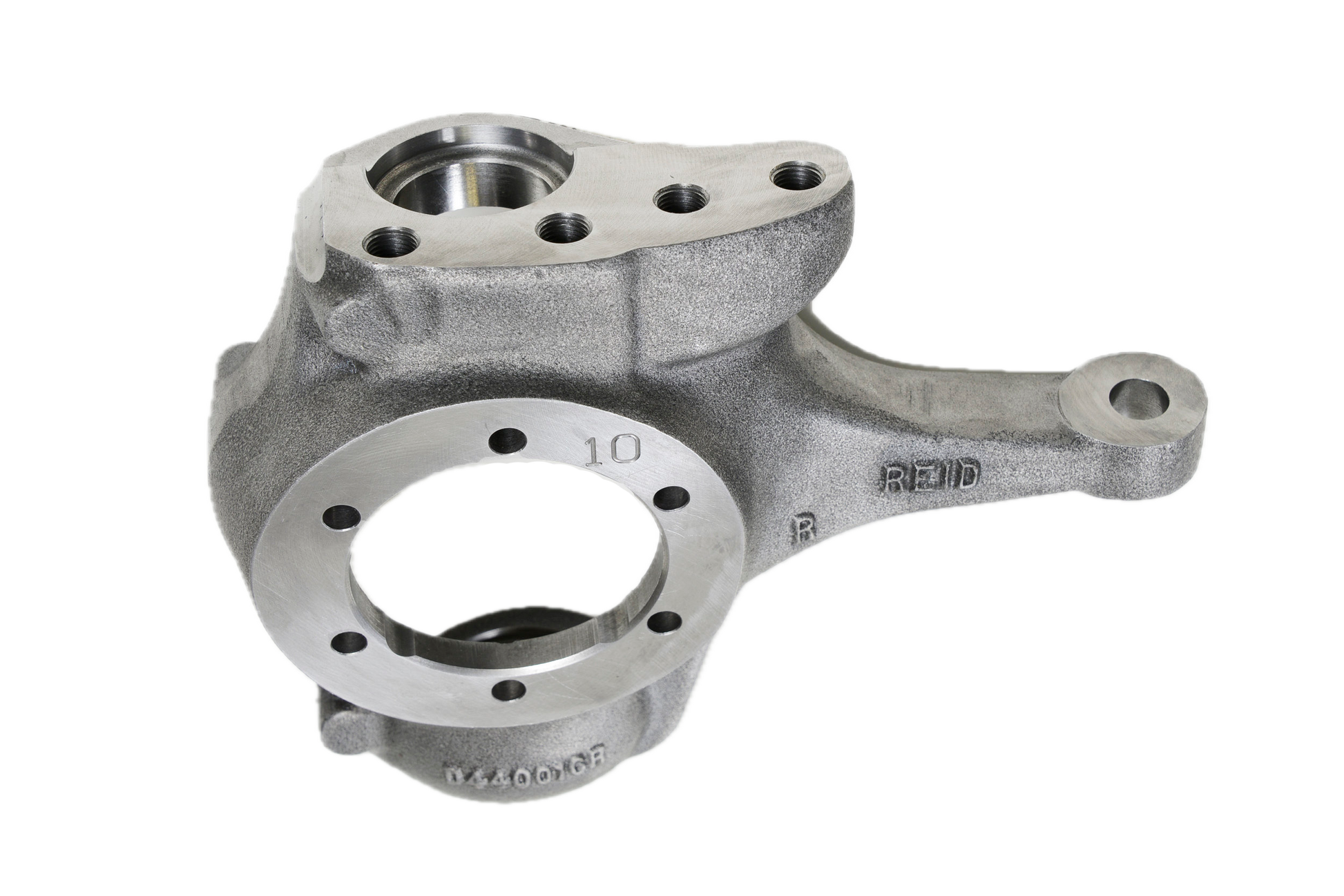

C10002R - Chevy Stock Replacement Non-Powdercoated 10-Bolt Knuckle

C10002R - Chevy Stock Replacement Non-Powdercoated 10-Bolt Knuckle

Regular price $369.00 USD
Regular price Sale price $369.00 USD
Sale Sold out
Orientation
  • Only available as a right, passenger-side knuckle

  • Identical to our regular Chevy Dana 44 & 10-BOLT passenger-side knuckles, but without orange powdercoating

  • Ideal for crossover steering applications where the OEM non-powdercoated driver’s-side knuckle is retained

  • Only available for the passenger side

  • Chevy/Jeep spindle bolt pattern accepts “outers” from all open knuckle Chevy half-ton and 3/4-ton front ends

  • Cast from high strength ductile iron

  • Machined with a “bottom up” taper to match OEM Chevy 10-Bolt tie rod location

  • Beefed up with extra material and ribbing

  • Flat tops machined and drilled for high steer arms

  • 4th bolt hole for high steer arms increases clamping force and sheer strength

  • 3/8″ thickness added to flat top of the knuckle for high steer tie rod to leaf spring clearance

  • Cast-in DUAL steering stops eliminate bent stop bolts that can cause u-joint and axle failures

  • Tapered tie rod holes accept factory tie rod ends

  • Tie rod holes can be drilled to accept 3/4″ heim ends

  • Interchangeable with all factory and aftermarket Dana 44 and 10-Bolt components

  • Fully machined and ready for installation

  • Machined to clear CTM u-joints without removing the grease fittings
